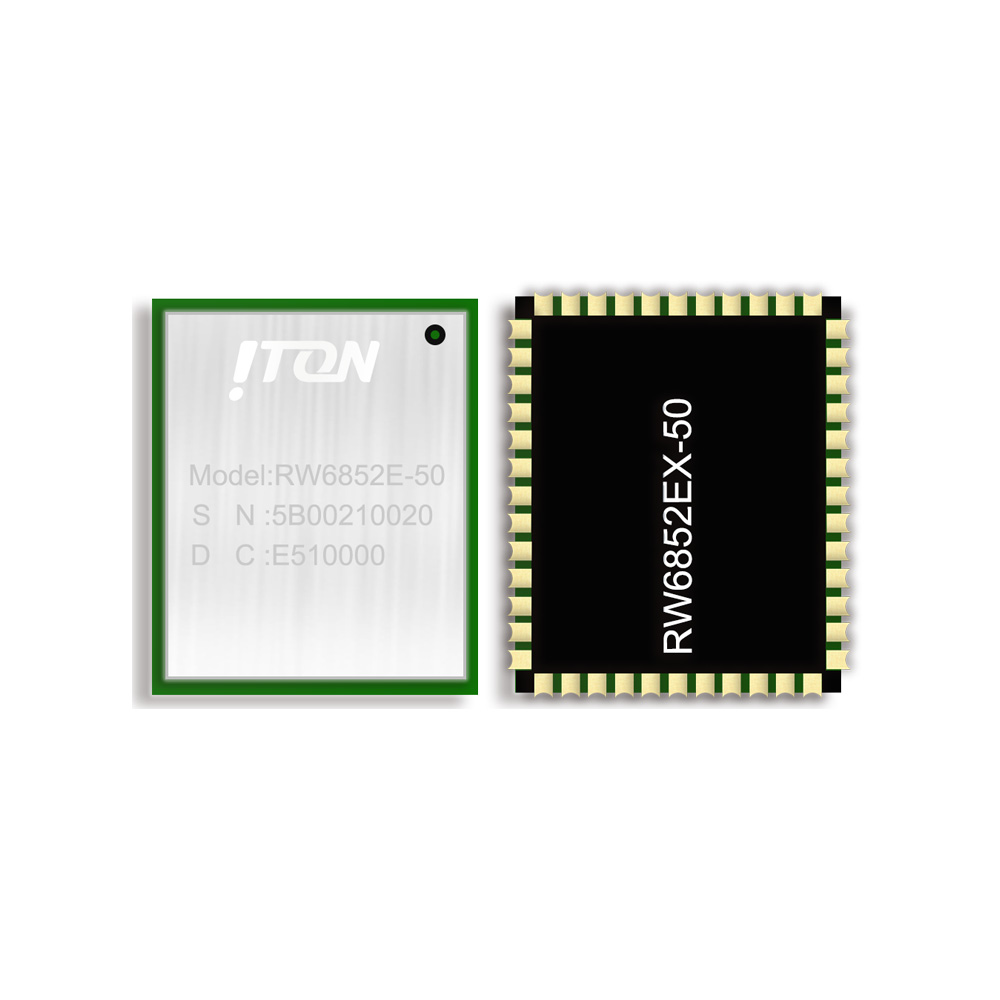

RW6852E-50 Wi-Fi & Bluetooth Module

Chip: Realtek RTL8852BE-VR-CG
Size: 15mm * 13mm * 2.2mm
Applicable: OTT/IPTV/Projector, etc




Hardware model: RW6852E-50
Platform support: Amlogic S905X/L series/S805Y/Rockchip 33xx/36xx series
System Support: Android/Linux/Win

main advantages

Supports Bluetooth5system (compatibleBT5.2 Logo)

Bluetooth-compatibleV2.1 EDR

Supports Bluetooth Low Energy

Internal integrationC la ss1,Class2andC lass3 PA



overview

RW6852E-50is a highly integrated module that supports2T2R 802.11axsolution,MU-MIMOand wirelessLAN(WLAN)PCI Expressnetwork interface controller andHS-UARTHybrid API. It combines a wireless local area networkMAC, a support2T2RWLAN baseband and RF modules. It provides a complete solution for high-performance wireless Bluetooth integrated devices. InIEEE 802.1laxmode,WLANsupport20mhz,40MHzand80mhzchannelMCSO-MCS11rate (highest1024gam), the data rate is as high1201mbps. In addition, allIEEE 802.11a/ B /g/n/acThe rate.
